Document Reference No.: FT_000148

USB-COM232-PLUS4 Datasheet

Version 1.2

Clearance No.: FTDI# 97

5 Mechanical Details

5.1 Module Mechanical Dimensions

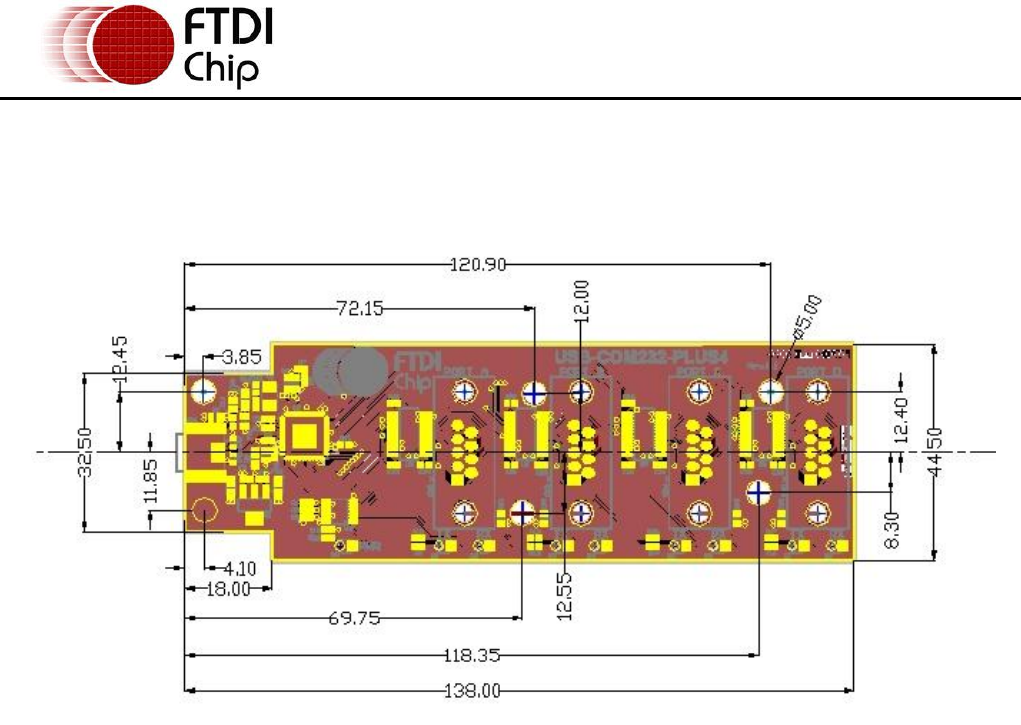

Figure 5.1 - USB-COM232-PLUS4 PCB Dimensions

Dimensions are in mm. The height of the module is dominated by the 4 D-type connectors and stands

12.8mm +/- 1mm. The D-type pins protrude below the PCB by 2.54mm +/-1mm
